Adjustable Camera. More...

#include <CameraEditable.h>

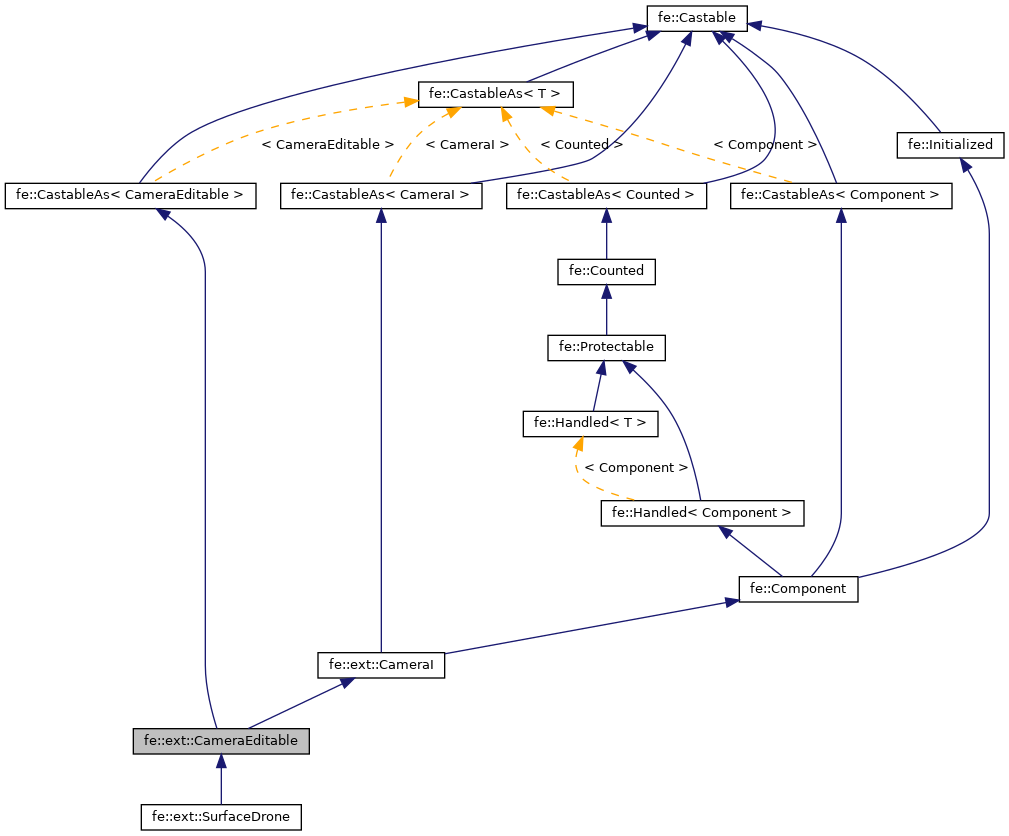

Inheritance diagram for fe::ext::CameraEditable:

[legend]

Public Member Functions
void	copy (sp< CameraI > a_spCameraI)

virtual void	setCameraMatrix (const SpatialTransform &matrix)
	Set camera transform. More...

virtual const SpatialTransform &	cameraMatrix (void) const
	Get camera transform. More...

virtual Vector2	fov (void) const
	Get perspective Field of View (degrees) More...

virtual void	setFov (Vector2 a_fov)
	Set perspective Field of View (degrees) More...

virtual void	setPlanes (Real nearplane, Real farplane)
	Set distance clipping planes. More...

virtual void	getPlanes (Real &nearplane, Real &farplane)
	Get distance clipping planes. More...

virtual void	setOrtho (Real a_zoom, const Vector2 &a_center)
	Set clipping planes. More...

virtual void	getOrtho (Real &a_zoom, Vector2 &a_center) const
	Get clipping planes. More...

virtual void	setRasterSpace (BWORD a_rasterSpace)
	choose drawing to 2D pixel coordinates More...

virtual BWORD	rasterSpace (void) const
	Get raster space mode (on/off) More...

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Protected Attributes
SpatialTransform	m_cameraMatrix

Vector2	m_fov

Real	m_nearplane

Real	m_farplane

Vector2	m_center

Real	m_zoom

BWORD	m_rasterSpace

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...
