A socket wrapper. More...

#include <Socket.h>

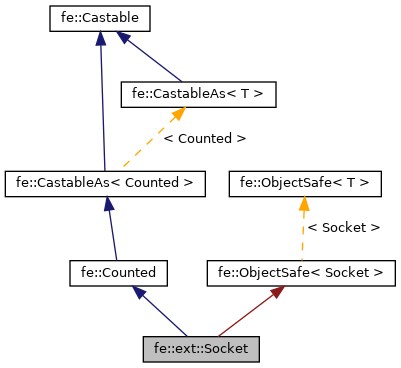

Inheritance diagram for fe::ext::Socket:

[legend]

Public Types
enum	Transport { e_tcp = 0, e_udp = 1 }

enum	ReadMode { e_readNormal = 0, e_readPeek = 1, e_readNoWait = 2 }

Public Member Functions
	Socket (void)
	Constructor. More...

	Socket (Poison *pPoison)
	Construct a socket with the given poison. More...

virtual void	openStream (Transport transport=e_tcp, BWORD server=FALSE)
	Wraps bsd socket(AF_INET, SOCK_STREAM, 0) call. More...

virtual SockHandle	socket (int domain, int type, int protocol)
	Wraps bsd socket() call. More...

virtual void	bind (SockAddr &sockaddr)
	Wraps bsd bind() call. More...

virtual void	listen (int backlog)
	Wraps bsd listen() call. More...

virtual sp< Socket >	accept (SockAddr &sockaddr)
	Wraps bsd accept() call. More...

virtual void	connect (SockAddr &sockaddr)
	Wraps bsd connect() call. More...

virtual IWORD	read (const void *pBuffer, IWORD count, ReadMode readMode=e_readNormal)
	Wraps bsd recv() call. More...

virtual IWORD	write (const void *pBuffer, IWORD count)
	Wraps bsd send() call. More...

virtual void	setPoison (Poison *pPoison)
	Set a Poison object. More...

virtual void	wait (void)
	Wait for the socket to be readable (via select), checking at a regular interval for Poison to be active. More...

virtual void	close (void)
	Close the underlying socket. More...

virtual bool	isOpen (void)
	Return true if the socket is open, otherwise return false. More...

virtual U32	id (void)
	Return a network identifier unique among Sockets connected to the same accept()ing 'server' Socket. More...

SockHandle	sockHandle () const

Transport	transportType () const

SockAddr	sockAddrOwn () const

Public Member Functions inherited from fe::Counted
virtual void	acquire (void)
	Increment the reference count. More...

virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	release (void)
	Decrement the reference count. More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Static Public Member Functions
static void	startup (void)
	Startup socket networking. More...

static void	shutdown (void)
	Shutdown socket networking. More...

Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Private Member Functions
IWORD	udpRead (const void *pBuffer, IWORD count, ReadMode readMode)

IWORD	udpWrite (const void *pBuffer, IWORD count)

Private Attributes
SockHandle	m_sock_handle

bool	m_open

bool	m_original

Poison *	m_pPoison

U32	m_id

U32	m_nextID

Transport	m_transportType

BWORD	m_server

SockAddr	m_udpSockAddrOwn

Static Private Attributes
static bool	m_wsaStarted = false

Additional Inherited Members
Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Detailed Description

A socket wrapper.

The premise of this wrapper is to be simple and to the point. Flexibility and extensibility are not explicitly considered. The intent is that all network communication will go through class and does not care about TCP/IP details.

A concept of thread poison is supported by this class due to the blocking calls (accept, read, connect). If Poison is associated with the Socket, then blocking calls will be aborted if the Poison becomes active before the calls can return normally. If this happens then a Poisoned exception is thrown.

A concept of network identifier is also supported by this class to provide a notion of site uniqueness in a networked application. It is implemented in this lower level abstraction to assure simplicity in maintaining uniqueness. A socket's unique id is 0 until it does a connect() in which case it will be given a unique id from the other side of the connection (presumably a 'server').

Constructor & Destructor Documentation

◆ Socket() [1/2]

fe::ext::Socket::Socket ( void )

Constructor.

◆ Socket() [2/2]

fe::ext::Socket::Socket ( Poison * pPoison )

Construct a socket with the given poison.

Member Function Documentation

◆ accept()

sp< Socket > fe::ext::Socket::accept ( SockAddr & sockaddr )

virtual

Wraps bsd accept() call.

References fe::ext::SockAddr::size().

◆ bind()

void fe::ext::Socket::bind ( SockAddr & sockaddr )

virtual

Wraps bsd bind() call.

◆ close()

void fe::ext::Socket::close ( void )

virtual

Close the underlying socket.

◆ connect()

void fe::ext::Socket::connect ( SockAddr & sockaddr )

virtual

Wraps bsd connect() call.

◆ id()

U32 fe::ext::Socket::id ( void )

virtual

Return a network identifier unique among Sockets connected to the same accept()ing 'server' Socket.

Note that this has nothing to do with a socket descriptor.

◆ isOpen()

bool fe::ext::Socket::isOpen ( void )

virtual

Return true if the socket is open, otherwise return false.

◆ listen()

void fe::ext::Socket::listen ( int backlog )

virtual

Wraps bsd listen() call.

◆ openStream()

void fe::ext::Socket::openStream	(	Transport	transport = `e_tcp`,
		BWORD	server = `FALSE`
	)

virtual

Wraps bsd socket(AF_INET, SOCK_STREAM, 0) call.

◆ read()

IWORD fe::ext::Socket::read	(	const void *	pBuffer,
		IWORD	count,
		ReadMode	readMode = `e_readNormal`
	)

virtual

Wraps bsd recv() call.

◆ setPoison()

void fe::ext::Socket::setPoison ( Poison * pPoison )

virtual

Set a Poison object.

◆ shutdown()

void fe::ext::Socket::shutdown ( void )

static

Shutdown socket networking.

◆ socket()

SockHandle fe::ext::Socket::socket	(	int	domain,
		int	type,
		int	protocol
	)

virtual

Wraps bsd socket() call.

◆ startup()

void fe::ext::Socket::startup ( void )

static

Startup socket networking.

Only required on Win32, but should always be done for portability.

◆ wait()

void fe::ext::Socket::wait ( void )

virtual

Wait for the socket to be readable (via select), checking at a regular interval for Poison to be active.

Mainly for internal use by read(), accept(), and connect()

◆ write()

IWORD fe::ext::Socket::write	(	const void *	pBuffer,
		IWORD	count
	)

virtual

Wraps bsd send() call.

The documentation for this class was generated from the following files:
